Description

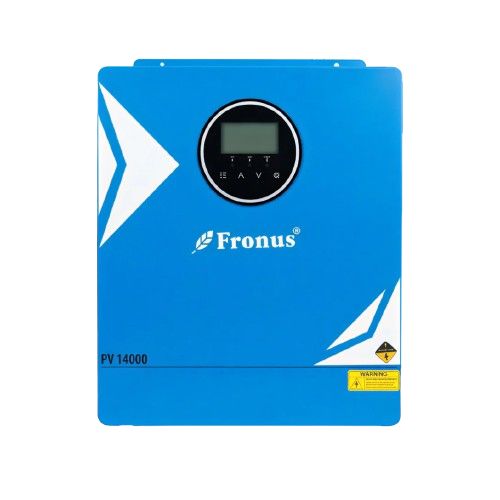

The Fronus 10kW PV14000 Off‑Grid Solar Inverter is a high‑capacity, battery‑less solution engineered for users who want powerful daytime solar performance without the cost and maintenance of batteries. Built for Pakistan’s demanding energy environment, this inverter delivers strong solar harvesting, reliable power output, and seamless off‑grid operation using only sunlight.
With support for large PV arrays and advanced MPPT control, it ensures highly efficient energy conversion even when sunlight conditions vary. Designed for homes, shops, and small commercial setups, the Fronus 10kW PV14000 is ideal for applications requiring strong output capacity—such as running multiple air conditioners, motors, refrigerators, and heavy appliances directly from solar power.
Key Features
10k HeWavy‑Duty Solar Output
Rated output power of 10,000W, suitable for powering large homes or commercial loads.
Battery‑Less Operation
Designed to run directly on solar power during the day—no batteries required—reducing system cost and maintenance.
Massive PV Input Capacity (Up to 13,500W)
Supports 4500W to 13,500W maximum PV input, allowing large solar arrays and future expansion.
High Conversion Efficiency
Optimized for maximum solar utilization with advanced MPPT control.
Three MPPT Trackers
Equipped with 3 independent MPPTs, each 8A, allowing solar panels to be installed in multiple orientations for higher efficiency.
Wide MPPT Voltage Range
MPPT operating window of 60–450V DC, ensuring flexibility in panel string design.
High DC Voltage Compatibility
Supports up to 500V DC maximum input voltage.
On‑Grid & Off‑Grid Support (Hybrid Capability)
Although battery‑less, it supports grid feeding up to 5500W when grid is available, offering additional operational flexibility.
Technical Specifications
| Specification | Details |
|---|---|
| Rated AC Power | 10kW |
| PV Input Range | 4500W – 13,500W |
| Maximum DC Voltage | 500V DC |
| MPPT Voltage Range | 60–450V DC |
| Number of MPPTs | 3 MPPT (8A each) |
| PV Operating Mode | Off‑Grid (Battery‑less daytime operation) |
| Grid Support | Grid feeding up to 5500W (if enabled) |
| Efficiency | High efficiency solar conversion (based on Meta 10kW spec) |
| Operation Type | Single‑phase |
Ideal Use Cases
- Battery‑less daytime solar systems
- Large homes with multiple ACs or heavy appliances
- Shops, offices, and commercial units
- High daytime consumption environments
- Users seeking low‑maintenance solar without batteries
Why Choose Fronus 10kW PV14000 Off‑Grid?
- No battery needed—significantly reduces installation cost
- Supports large solar arrays for maximum power production
- Strong enough to run heavy appliances entirely on solar
- Advanced MPPT performance for maximum energy harvest
- Ideal for Pakistani conditions with high load demand and rising electricity costs
