Description

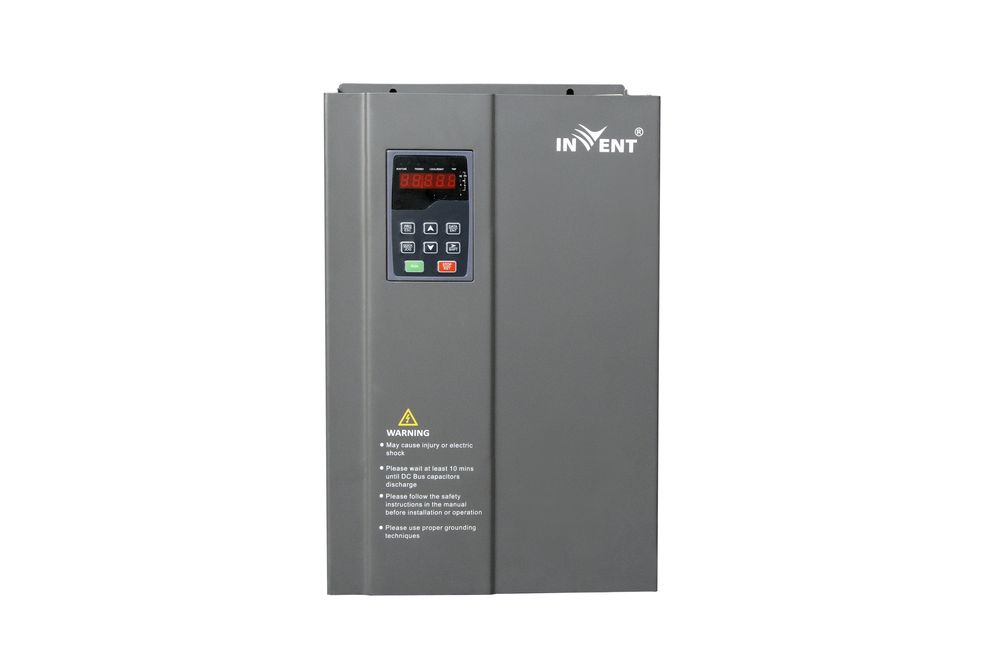

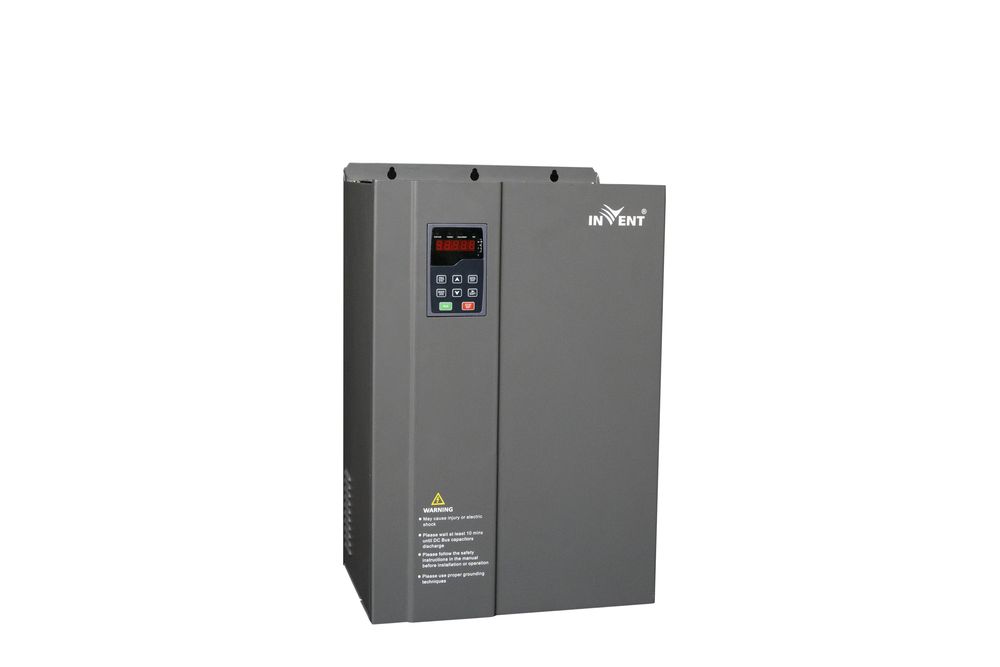

The INVT VFD (Variable Frequency Drive) is a highly efficient and reliable inverter that provides variable speed control for three-phase electric motors. It is designed to optimize energy consumption and improve the performance of motors in various industrial applications. With a power rating of 22kW to 30kW, the INVT VFD is ideal for controlling larger motors in applications such as pumps, fans, conveyors, and compressors.
This VFD offers precise motor control, reduced wear and tear on mechanical components, and energy savings by adjusting motor speed to the load requirements. It features a user-friendly interface, multiple protection features, and a high level of integration with industrial systems. The INVT VFD is built to withstand tough operating environments, offering long-lasting reliability and low maintenance costs.
Key Features:
- Power Rating: Available in 22kW and 30kW variants for 3-phase motors.
- Input Voltage: 380V to 480V AC, suitable for various industrial power grids.
- Output Frequency Range: 0.1Hz to 600Hz, ensuring precise speed control for different motor speeds.
- Compact Design: Space-saving design ideal for crowded control panels.
- Energy Efficient: Intelligent algorithms for energy-saving during motor operations.
- Motor Protection: Overload protection, short circuit protection, and under-voltage protection.
- Control Modes: Supports V/f control, vector control, and torque control for versatile applications.
- Built-in EMC Filter: Ensures compliance with electromagnetic compatibility standards, minimizing interference.
- Safety Features: Includes functions such as emergency stop, over-voltage, under-voltage, and overheating protection.
- User-Friendly Interface: LCD keypad for easy setup, monitoring, and diagnostics.
Applications:
- Pumps: Efficient control for variable flow rates.
- Conveyors: Speed adjustment to optimize material handling.
- Fans: Variable speed control to manage airflow.
- Compressors: Energy-saving performance in varying load conditions.
INVT VFD 22/30kW 3 Phase Datasheet:
| Parameter | Value |
|---|---|
| Power Range | 22kW – 30kW |
| Rated Input Voltage | 380V ~ 480V AC (±10%) |
| Output Voltage | 0V – Input Voltage |
| Rated Output Current | 43.5A (22kW) / 60.5A (30kW) |
| Frequency Control Range | 0.1Hz – 600Hz |
| Control Method | V/F Control, Vector Control, Torque Control |
| Cooling Method | Forced air cooling (with internal fan) |
| Enclosure Protection | IP20 (Standard), optional IP54 |
| Operating Temperature | -10°C to 50°C |
| Altitude | Up to 1000 meters above sea level |
| Communication Ports | RS485 (Modbus RTU), optional Ethernet |
| Input Frequency | 50Hz/60Hz |
| Display Type | LCD Display with keypad |
| Dimensions (H x W x D) | 350mm x 220mm x 200mm (22kW), 400mm x 230mm x 230mm (30kW) |
| Weight | 12kg (22kW), 15kg (30kW) |
| Humidity | 5% to 95% non-condensing |
| Environmental Protection | CE, UL, and RoHS Compliant |
Certifications:
- CE: Conforms to European safety and environmental standards.
- UL: Recognized under UL508C for industrial control equipment.
- RoHS: Free from hazardous substances as per RoHS standards.
