Description

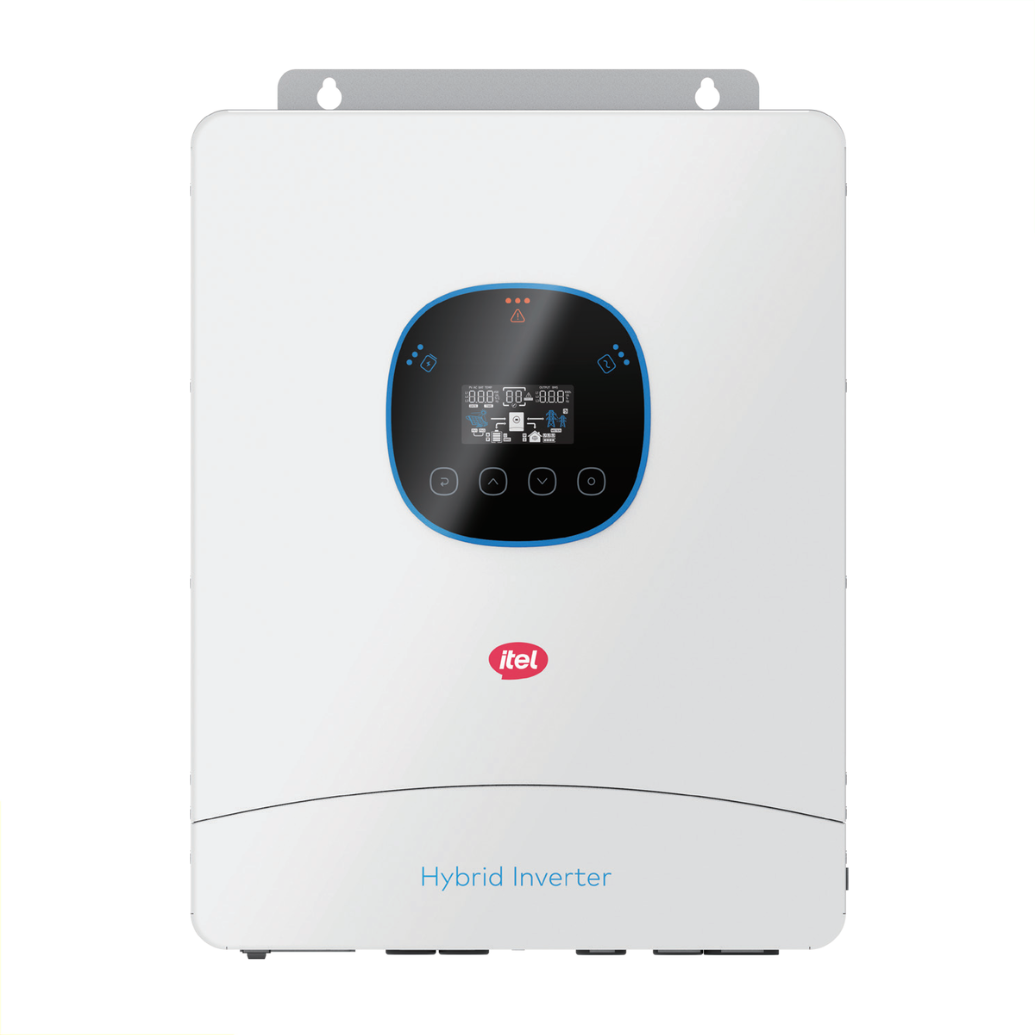

The Itel 6kW Hybrid Inverter IP54 is a high‑performance, feature‑rich inverter engineered for residential and small commercial solar systems that require strong load handling, durability, and intelligent power management. Equipped with advanced MPPT tracking, a powerful 6kW output, 12kW surge capability, and IP54‑rated dust and splash resistance, this inverter ensures stable and reliable operation even in challenging Pakistani environmental conditions.
Designed for hybrid operation (Solar + Battery + Grid), it efficiently manages energy flow across all power sources, providing seamless backup, intelligent load handling, and high‑speed switching during outages. Its ability to parallel up to 12 units further makes it an excellent choice for scalable installations.
Key Features
High MPPT Efficiency
- MPPT tracking efficiency up to 99.9%, maximizing solar energy extraction.
6kW Continuous Output with 12kW Surge Power
- Delivers 6000W continuous output with a 12000VA surge rating, ideal for heavy loads like ACs, pumps, refrigerators, and motors.
Strong Overload Handling
- Supports 150% overload for 10 seconds and 200% overload for 5 seconds, enabling smooth startup for torque‑based appliances.
IP54 Dust & Splash Resistant
- Built with IP54 protection, ensuring safe operation in dusty and semi‑outdoor environments.
Smart Load Control & Dual Output
- Intelligent load recognition and ability to split high‑load vs. essential‑load outputs for optimized energy usage.
High PV Input Capacity
- Supports up to 8000W PV input, allowing solar oversizing for higher daytime performance.
Fast Charging Capability
- Equipped with 120A MPPT charging and 120A AC/generator charging, enabling rapid battery replenishment.
Ultra‑Fast Switching
- UPS‑level switchover time of 10 milliseconds, ensuring uninterrupted power for computers and sensitive electronics.
Parallel Operation (Up to 12 Units)
- Scale your system up to 72kW total output using parallel support.
Comprehensive Protection System
- Short‑circuit protection
- Overtemperature protection
- Surge protection (DC Type III)
- Overload & overvoltage safeguards
Smart Monitoring & Connectivity
- Built‑in support for WiFi / RS485 / RS232 and generator auto‑start (ATS).
Technical Specifications
| Category | Specification |
|---|---|
| Rated Output Power | 6000W (6kW) |
| Surge Power | 12,000VA (5 seconds) |
| MPPT Efficiency | 99.9% |
| Battery Mode Efficiency | 93% |
| PV Input Power | Max 8000W |
| Max PV Voltage | 500V DC |
| MPPT Voltage Range | 85V–450V DC |
| Max PV Current | 27A |
| Battery Voltage | 48V (40V–60V supported) |
| Charging Current | 120A MPPT / 120A AC/Genset |
| Discharging Current | 130A max |
| Switching Time | 10ms UPS‑grade switchover |
| AC Output Voltage | 220/230/240V AC |
| Ingress Protection | IP54 dust/splash resistant |
| Cooling Method | Intelligent fan cooling |
| Noise Level | <60 dB |
| Dimensions | 120 × 346.6 × 444.7 mm |
| Weight | ~15 kg |
| Parallel Units | Up to 12 in parallel supported |
Ideal For
- Large homes with air conditioners
- Shops, offices & small commercial setups
- Off‑grid and hybrid solar systems
- Locations with dusty environments (IP54 protection)
- Users needing strong motor‑starting capability
- Systems requiring scalability up to 72kW
Why Choose the Itel 6kW Hybrid Inverter IP54?
The Itel 6kW IP54 Hybrid Inverter offers a rare combination of ultra‑high MPPT efficiency, strong load capability, battery + grid + solar hybrid operation, and durability against dust and moisture. With its advanced protections, powerful charging capacity, and scalability, it stands out as one of the most capable 6kW hybrid inverters in its class.
