Description

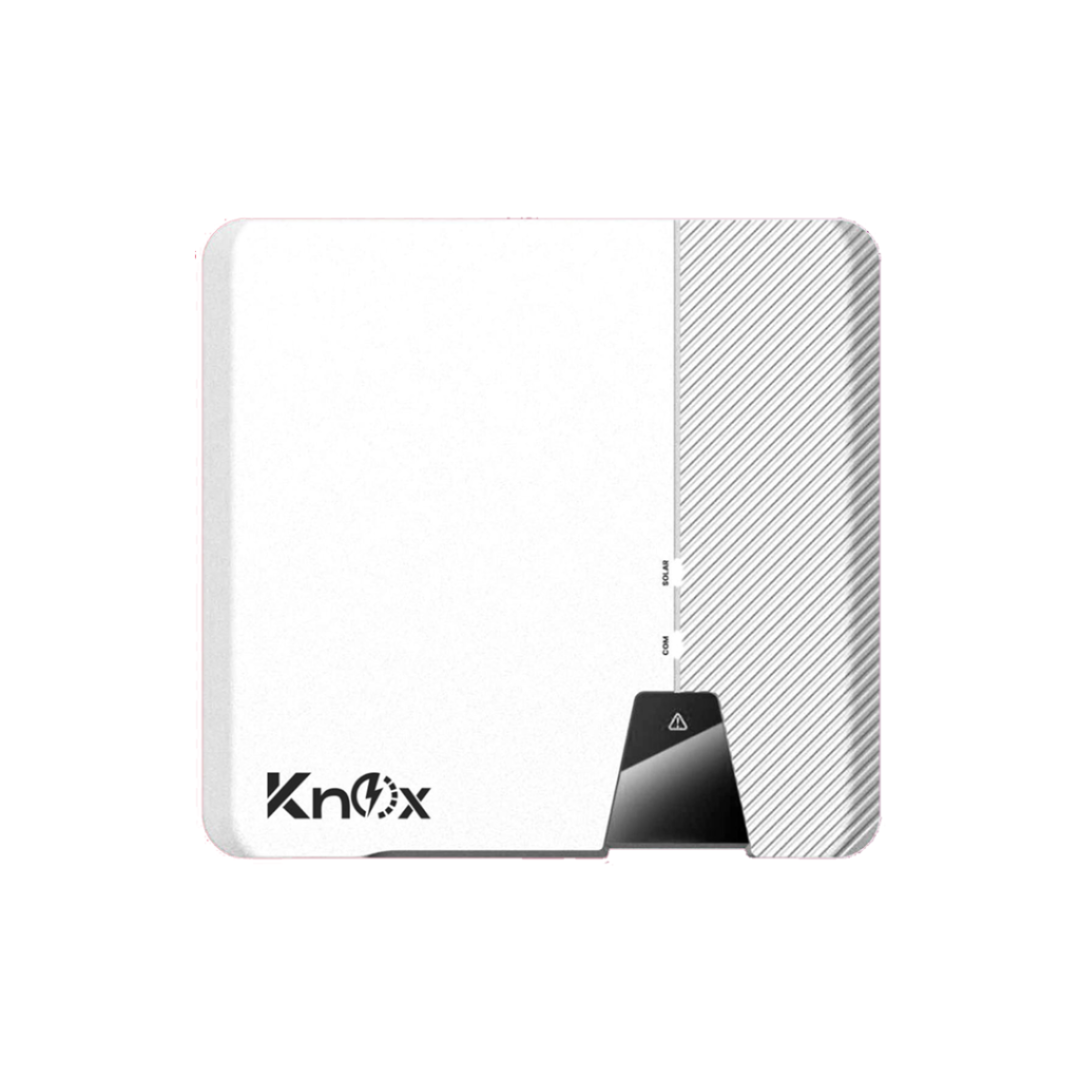

The ASW 10K LT-G2 Inverter is our line of benchmark three phase solar inverters designed for use in small decentralized residential, commercial, and industrial systems. These high-performance and high-delivery inverters are extremely easy to install and commission and are designed to be reliable and low-maintenance.
The ASW 10K LT-G2 Inverter feature a sleek design that is compact, wall-mountable, and IP66-rated, making them weatherproof and extremely durable. They have a wide MPP voltage range with a possible 150% oversizing of the PV array for flexibility and efficiency under a variety of conditions. Do you need an inverter that can power an energy-hungry system? The ASW 10K LT-G2 inverter feature a maximum input current of 13A per string making them a perfect pairing for bi-facial and large-area PV arrays.
Reliability:
Powerful:
Easy to Install:
The ASW 10K LT-G2 Inverter is designed to be installed quickly and easily with standard tools and the Phoenix Contact DC connectors make these inverters compatible with a wide range of solar panels. Optional Plug & Play and 4G dongles connect them to the internet and allow up to five to be monitored by Solplanet’s user-friendly mobile application. Users can view real-time solar installation data, configure their inverters, and receive system alerts, right in the palm of their hand.
| Features | |
| Communication Interface 1 & 2 | Wi-Fi / RS485 |
| Country of Manufacture | China |
| Input (DC) | |
| Max PV Array Power | 15000Wp |
| Max Short Circuit Current | 40A / 20A |
| MPPT Voltage Range/Rated Input voltage | 150V to 1000V/630V |
| Number of Independent MPPT Inputs/Strings per MPPT Input | 2/A:1:B:1 |
| Output (AC) | |
| AC Nominal Voltage | 220V/380V – 230V/400V – 240V/415V |
| Rated Power | 10000W |
| General Specifications | |
| Degree of Protection (According to IEC 60529) | IP65 |
| Dimensions | 50.3 x 18.3 x 43.5 cm |
| Weight | 17.3 |
